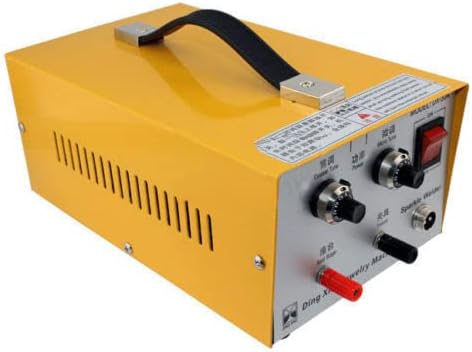

80A Pulse Sparkle Spot Welder Gold Silver Platinum Jewelry Welding Machine 110V 220V

High Power Argon Pulse Spot Welder, Welding ring machine, Adjustable pulse spot welding butt welding Description: 1.This item is 2in1 welding machine (1 x Pedestal,1 x Handheld welding gun) 2.Jewelry welding machine can be used for fast welding of platinum, gold , K gold , silver, steel and precision welding of wires like ends of circle , oval buckle, fine wire. Argon can be accessed directly without soldering solder powder , solder joints are smooth and not black . Installation and trial run: 1.Connect electrode holder to the output cathode; connect anode electrode holder to the output. 2.Tungsten needle can be sharpened in grinding machine, that is to use sophisticated power management working principals . Inlet valve adjusted to argon ( argon models are applicable ) 3.When installing tungsten needle, please make it protrude the welding head about 5MM . tungsten needle diameter is about 1mm. Operation: 1.Turn on the power switch. 2. Adjust the power knob. The general adjustment scale ( according to diameter of the part ) is 1 to 1.5 , ( fine ) adjustment scale is 7-8 (Can be adjusted according to scale of work requirements) 3. Hold the parts with tweezers and focus the end of the part to the tungsten needle (optimal distance is 5mm) ,the whole part can not touch the tungsten needle. 4. Stamp the foot switch. (then stepping away immediately). Welding is completed. Parameter: 1. Voltage:110V 220V 2. Power:500W 3. Maximum current:80A 310*165*140MM 4. Weight:6KG/Set

• Jewelry Welding: This machine is specifically designed for welding gold, silver, and platinum jewelry, providing precise and reliable spot welding.
• Pulse Sparkle Technology: The spot welder utilizes pulse sparkle technology, which delivers short bursts of energy for precise and controlled welding.
• Adjustable Current: The machine allows for adjustable current settings, making it suitable for a wide range of jewelry welding applications.
• Dual Voltage: The spot welder is compatible with both 110V and 220V power sources, providing flexibility for different electrical systems.
• Compact and Portable: This welding machine is compact and lightweight, making it easy to transport and suitable for both professional jewelers and hobbyists.
